Orthographic Drawing: Step-by-Step Tutorial & Easy Ideas
Orthographic drawings are one of the most-loved sketching subjects, and for good reason — the basic version comes together from light guidelines in just a few minutes. Follow the nine steps below to get the foundations right, then browse the ideas list for your next orthographic sketch.
- Difficulty Medium
- Time ~20 min
- Tools Pencil, eraser, paper
- Starts with light guidelines
How to Draw Orthographic Step by Step
Step 1 of 9

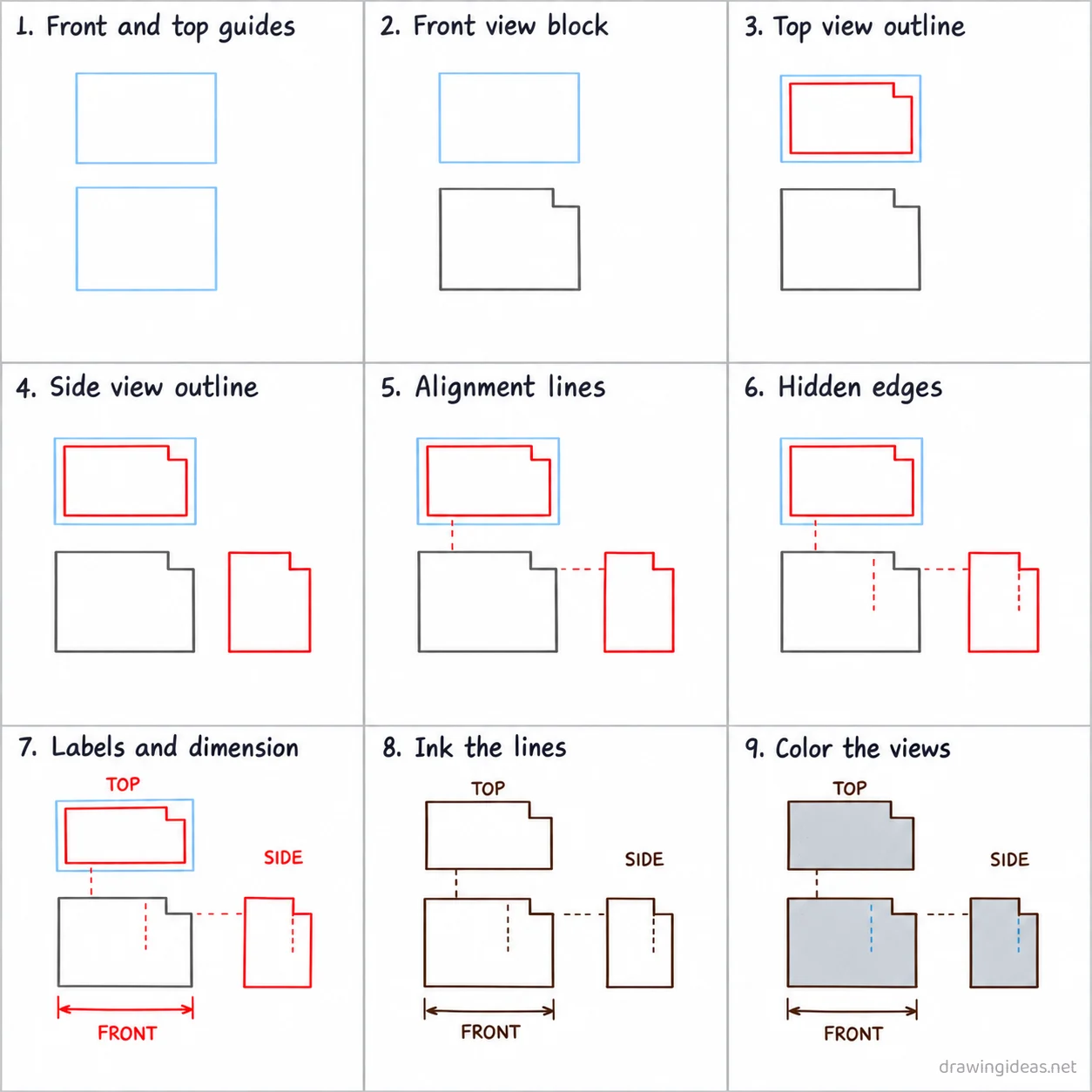

Front and top guides
Draw a light rectangle in the lower left of the page for the front view, then another rectangle directly above it for the top view.
-
Front and top guides
Draw a light rectangle in the lower left of the page for the front view, then another rectangle directly above it for the top view.
-
Front view block
Trace a simple block outline on the front rectangle with one small notch cut from its top right corner.
-
Top view outline
Trace the top view outline on the upper rectangle, matching the front view's width and showing the same notch corner.
-
Side view outline
To the right of the front view draw the side view outline at the same height, showing how deep the notch cuts in.
-
Alignment lines
Draw thin dashed lines connecting the front view straight up to the top view and straight across to the side view.
-
Hidden edges
Add short dashed lines inside the front and side views to mark edges hidden behind the notch.
-
Labels and dimension
Write a small label under each of the three views, then add a dimension line with arrows under the front view.
-
Ink the lines
Go over every kept line with dark ink, then erase the front and top rectangle guides.
-
Color the views
Fill all three block views pale gray and the dashed hidden-edge lines light blue.
